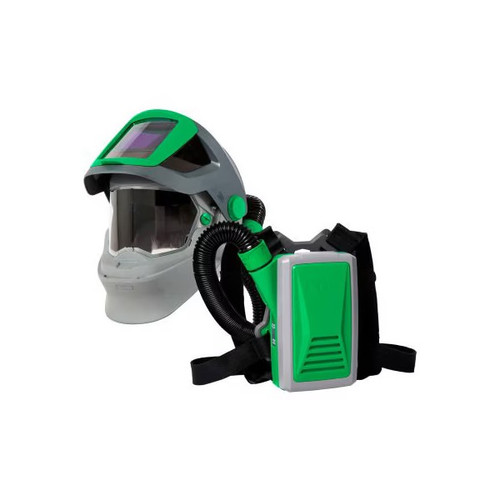

RPB 15-0015 Z4 Respirator with FR Face Seal and HX5™ PAPR

With comfort and durability the top priority, GVS-RPB® has created the most ergonomically balanced welding respirator available. Its lightweight design and multi-adjustment head suspension system ensures a stable fit that moves with you, reducing aches and strains on your neck, allowing you to enjoy life’s best moments.

The Z4® boasts an optically clear grinding visor and a flip-up welding visor designed to increase operator productivity. Visibility is further enhanced by clip-in shade 5 side windows offering maximum peripheral vision. These can also be switched out for window blockers which are included in the standard package.

The Z4 includes the large GVS-RPB ADF lens with 1/1/1/2 optical quality rating guaranteeing uniform shading and distortion free vision, allowing you to work safely and more comfortably for longer across different angles.

To further increase your comfort and stability, the Z4 can also be fitted with the Comfort-Link™ padding system for an individualized fit.

HX5 PAPR

• Ingress protection – certified to IP53 rating
• Sleek, considered surfaces for ease of cleaning
• HE filter removes up to 99.97% of particulates down to 0.12 microns
• Two belt options available – FR rated and standard easy clean
• Two mount options available – waist mount flexi-belt system or back harness mount
• Fixed single fan speed
• Filter safety – the filter door cannot mount to the unit unless a filter is fixed in place
• LED user interface indicates airflow and battery level
• Alarming – visual and audible alarms alert the user to low battery level, or when airflow falls below the minimum requirements due to the filter needing replacing, or an obstructed airflow.
• HX5 strategically distributes weight through its vertical mounting position and contouring to your back
• Lightweight – complete system weighs just 2.55lbs.
• Long-life lithium-ion battery lasts for 10+ hours.

The Z4 is certified to the standards below:

Meets or Exceeds NIOSH PAPR Type C / ANSI S3.19*, ANSI Z87+, ANSI Z87W / c SEI CSA Z94.3-15

Features:

• ANSI Z87+ (EN166) approved grinding lens for eye protection.
• Removeable ADF lens and replaceable impact lens.
• Side windows for increased peripheral vision, optional window blockers included.
• Large ADF lens with 1/1/1/2 optical quality rating for distortion free vision.
• FR rated face seal and shoulder cape option available.
• Gray heat-reflecting shell for lower in-helmet temperatures.
• Compatible with supplied or powered air.
• Dual air distribution directs a quarter of incoming air across the grinding visor to prevent fogging.
• Swivel outlet to adjust air flowing to breathe zone.
• Includes RPB Quiet-Slim™ ear defenders.
• Flip-up weld visor for quick transition between welding and grinding.

Includes:

• Z4 Respirator
• FR Face Seal
• 1/1/1/2 ADF lens
• PAPR breathing tube
• Slim-Line ear defenders
• HX5™ PAPR
