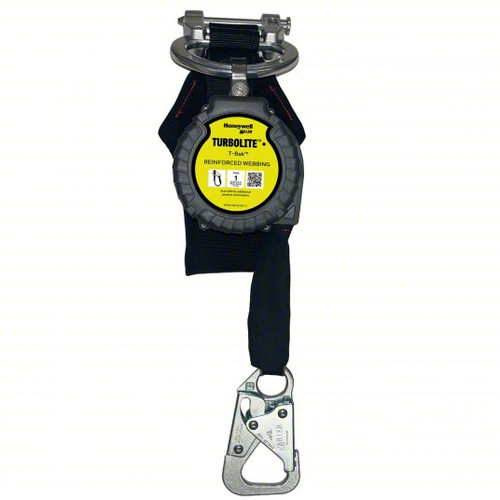

Miller MTL-OTB1-64/9FT Turbolite +T-Bak Self-Retracting Lifeline with Reinforced Webbing & Locking Snap Hook (9 ft.)

The Honeywell Miller Turbolite™+ T-Bak, designed for tie-back applications. Equipped with an easy to install shock-absorbing connector system and abrasion-resistant Vectran™ core webbing lifeline including an improved haptic experience for tie-off ease , the product meets ANSI Z359.14-2021 Class 1 requirements.

Meets or Exceeds: OSHA 1910.140 / OSHA 1926.502 / ANSI Z359.14-2021 Class 1

Features:

• Increased weight rating up to 420lbs (190.5kg) - OSHA
• Enhanced graphics, icons, and colors on UV-resistant scratch resistant labeling
• Now featuring a 9-foot lifeline, allowing worker to tie-back the full lenght of the webbing without restrictions
• Engineered from Vectran/Polyester material with high-tech strength and abrasion-resistant webbing
• White side stripe stitching indicates that it is specially designed for tie-back use
• High-impact resistant nylon housing• Integral swivel on the housing to reduces lifeline twisting
• Miller 5K® Locking Snap Hook Designed Specifically for Tie-Back use with 5,000 lbs. (22 kN) gate load capacity from any angle."
• Min. Weight Capacity: 130 lb
• Max. Weight Capacity: ANSI 310 lb / OSHA 420 lb
• Brake Material: Stainless Steel
• Connector Gate Strength: 5 000 US Pound
• Connecting Component Swivel: Carbon Steel
• Breaking Strength: 3600
• Lifeline Connector Material: Steel Plated
• Lifeline Connector Opening: Bracket Connector
• Lifeline: Vectran™ + Polyester blend
• Operating temperature Range: -40 to 130degree Fahrenheit
• Unit Connector: Aluminum Harness One Pin Connector
• Unit Connector Breaking Strength: 3600 pound-force

Performance (ANSI - Actual Performance Based On 310 Lb (140 Kg))

• Anchor Location: At/above D Ring Height
• Device Class: Class 1
• Average Fall Arrest Load: 900 lbf
• Peak Force: 1250 lbf
• Arrest Distance: 37 inches
• Max. Average Fall Arrest Load: 1350 lbf
• Maximum Peak Force: 1800 lbf
• Maximum Arrest Distance: 42 inches
• Static Strength: 3600 lbf
