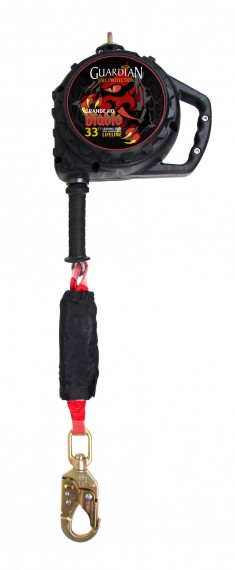

Diablo 42011 Nylon Coated Galvanized Cable SRL Carabine from Guardian Fall Protection features a 33’ , ergonomic handle, and swivel steel indicating snap hook. It is available in a standard model, or in a leading edge (LE) model, which includes nylon coating for the lifeline and an integrated shock absorber. Lightweight and extremely durable, the Diablo Grande is well-suited for a variety of fall protection applications.

Meets and Exceeds: ANSI Z359.14-12, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910

Features and Specs:

• Carabiner included
• Swivel top & swivel snap hook
• Ergonomic carrying handle
• Length: 33'
• Connector Type: Steel Snap Hook
• Worker Capacity Range: 130-420 lbs.
• Average arresting force: 1,350 lbs.

Materials:

• Aluminum
• Stainless steel
• Zinc-plated steel
• High-strength ABS
• Polyester

Personal Fall Arrest: Diablo Cable SRLs may be used to support a MAXIMUM 1 Personal Fall Arrest System
(PFAS) for use in Fall Arrest applications. Structure must withstand loads applied in the directions permitted by
the system of at least 5,000 lbs. Applicable D-ring: Dorsal.

• Free fall, Leading Edge (LE) Use: Maximum 6’.
• Free fall, non-LE Use: Not permitted.

LE Use:

• Min. setback distance from edge: 0’
• Max. arresting distance: 54” - 102”
• Min. fall clearance: 17’ - 21’
• 130-310 lbs.

Non-LE Use:

• Max. arresting distance: 24”
• Min. fall clearance: 6.5’
• Class A SRL
• 130-420 lbs.
