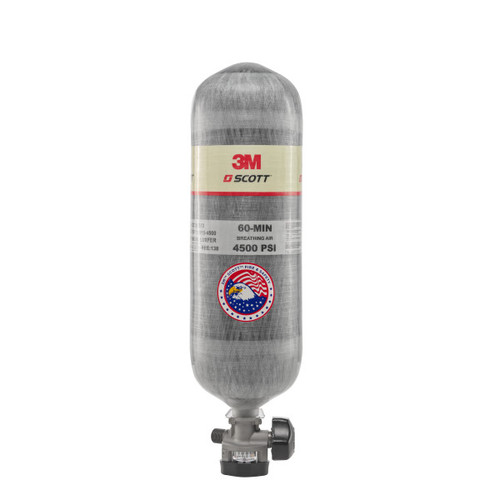

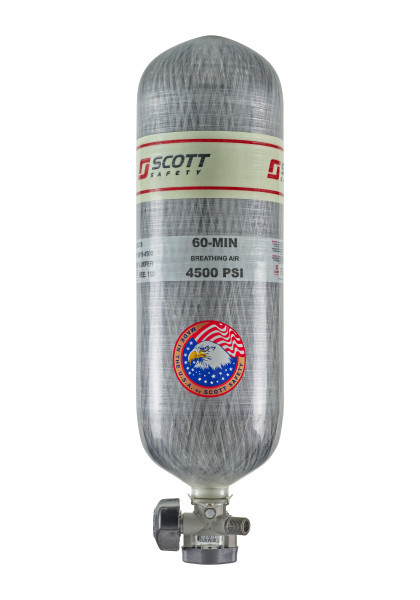

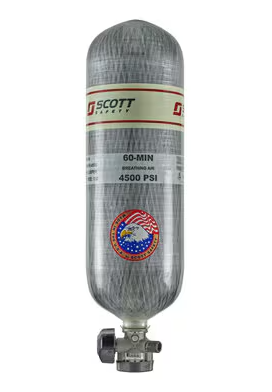

Scott 804723-01 Cylinder & Valve Assembly

3M™ Scott™ carbon cylinder for SCBA users has a lightweight, composite cylinder consisting of an aluminum alloy inner shell with a total overwrap of carbon fiber, fiberglass and an epoxy resin. Working pressure 4500 psig and rated for 60 minute duration based on NIOSH breathing rates.

Continuing our commitment to the fire service, our 5.5 cylinder keeps the form, durability and capacity customers are accustomed to, while offering a reduction in weight and reduced profile.

As another “industry first,” 3M Scott increased the pressure to 5500psi and reduced the size and weight of the cylinder. To put it simply, we built a lighter, smaller and safer cylinder to help with reducing fatigue, improving productivity and decreasing injuries.

With the changes in the NFPA 1981, 2013 edition standard and the requirement for a 33% EOSTI, the 5.5 cylinder provides additional air capacity in a traditional form factor.

Features:

• Carbon Cylinders are built to DOT and TC specifications.
• Luminescent band provides greater visibility
• Hydrostatic testing to be performed every five years
• Up to 12% reduction in cylinder weight and 9% reduction in cylinder diameter
• 60 minute duration
• Helps to reduce fatigue, increase productivity and decrease injuries
• Compatible with existing truck seats and brackets
• 45-minute duration maintains similar profile as 30-minute
• Pressure: 4500 psi cylinder
• Air Capacity (Imperial): 88 scf
• Shelf Life: 180 Days
• Material: Carbon Fiber Wrapped
• Cylinder Valve: CGA Threaded

Carbon Cylinder Specifications:

• Composite cylinder consisting of an aluminum alloy inner shell, with a total overwrap of carbon fiber, fiberglass and epoxy resin
• Design to DOT and TC specifications
• Rated for 30', 45', 60' and 75' durations based on NIOSH breathing rates
• Hydrostatic testing performed every five years
• 15-year life expectancy

Cylinders are not eligible for returns or exchanges
